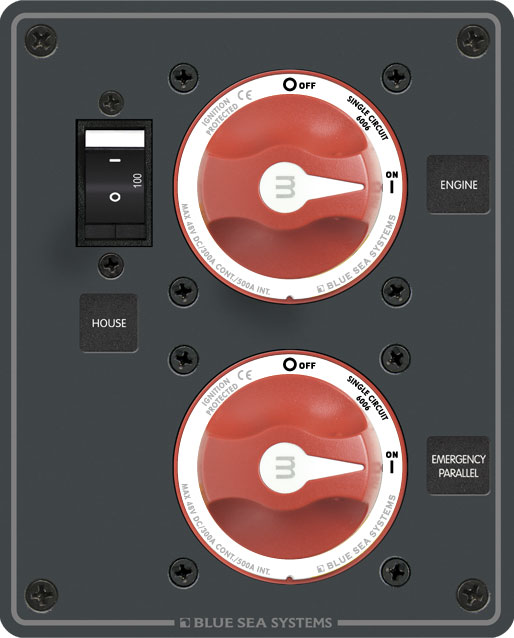

Blue Sea Dual Battery Bank Management Panel
Model: 8080-BSS
- Isolates the Engine circuit from the House circuit
- Allows emergency cross connect between isolated battery banks
- Protects electronics from sags and spikes caused by engine cranking
Specifications
| Maximum Voltage | 32V DC |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 min) |
| Cranking Rating 10 sec | 1500A |
| Cranking Rating 1 min | 775A |
| Height | 6.50in (165.1 mm) |
| Width | 5.25in (133.35 mm) |
| Depth | 3.00in (76.2 mm) |
| Weight | 2.20lb (1 kg) |
What’s in the Box:
- 8080 Panel
- Instructions
