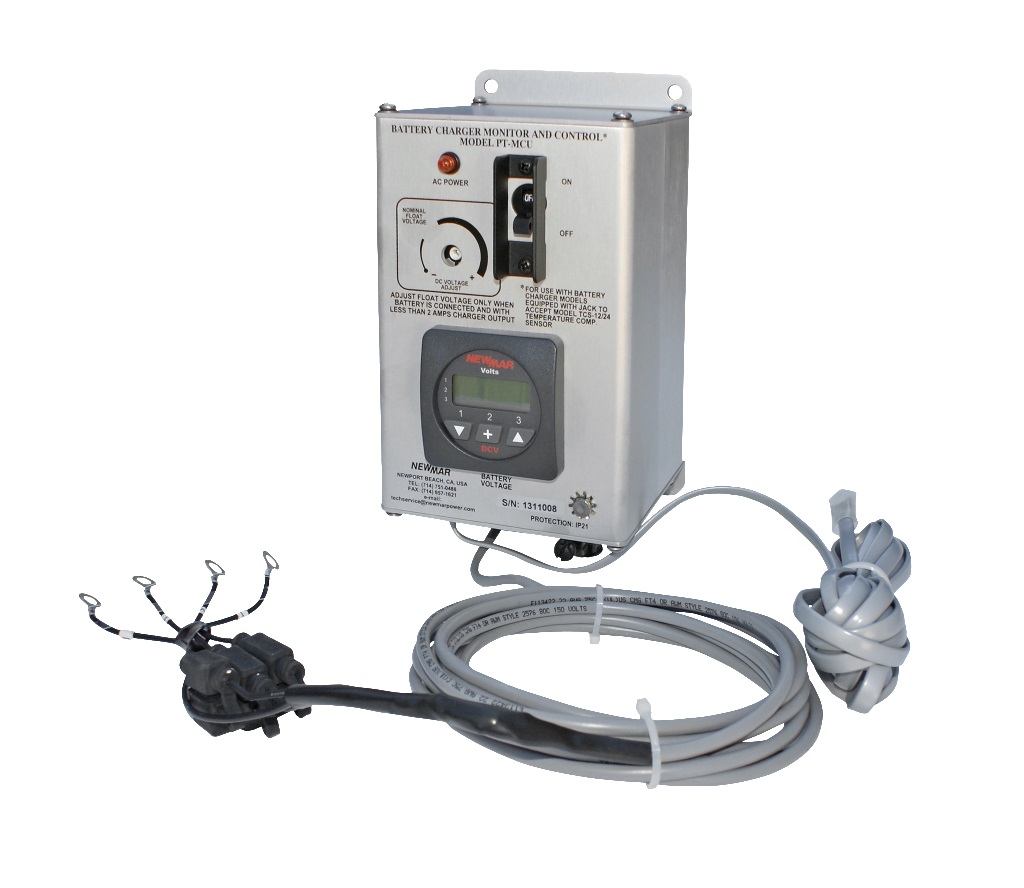

Newmar Phase three Monitor Control unit
Model: PT-MCU
- Digital readout of 3 battery bank voltages to 1/10th volt
- Adjustable DC high/low voltage alarm
- Output float voltage adjustment pot; permits fine tuning from -4% to +5%
- AC circuit breaker (30A, double pole) provides overcurrent protection and manual disconnect
- AC power ON indicator light
- 10ft wiring harness for easy connection of PT Series Charger
- Compatible with: PT-14W, PT-25W, PT-40U, PT-80, PT-24-8W, PT-24-13W, PT-24-20U, PT-24-45U, PT-24-95U, and PTMS-24-67
- Waterproof wire cord grips
- Heavy duty top and bottom mounting flanges
Designed for installation in conjunction with most models of PT Battery Chargers, this unit provides additional functionality of monitoring, control, and alarms. It contains a Digital DC volt meter with 3 battery bank sense selector, a dial that adjusts the PT charger float voltage, and AC Master circuit breaker for control and protection of charger input power.
A 10 ft wiring harness is provided for AC input and DC monitor wiring to the charger.
Specifications
| Case | Anodized aluminum case |
