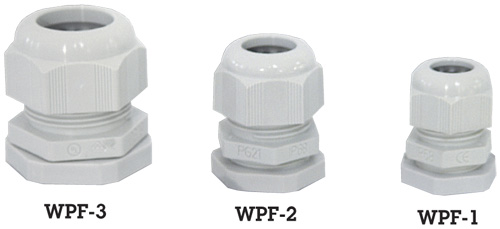

Waterproof Fittings
For complete waterproof assembly (IP68) use these compression fittings. Retaining nut secures fitting to enclosers, compression hub creates waterproof seal around wires. Various sizes are available in a wide range of cable diameters.
| Model | Cable Diameter Range |
Mounting Hole Diameter |
EX Enclosure Knock-Out Size Ref. |
| WPF-1 | .2?-.47? | .91" (22.5 mm) | PG-16 |
| WPF-2 | .35?-.71? | 1.14" (29.0 mm) | PG-21 |
| WPF-3 | .55?-.98? | 1.48" (37.5 mm) | PG-29 |
